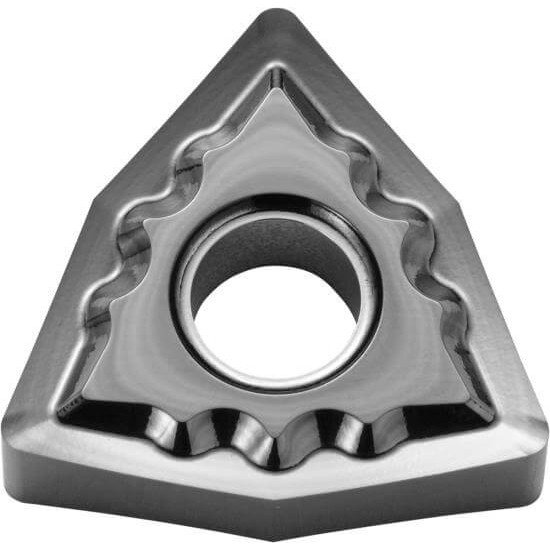

WNGG431AH KW10 Grade Uncoated Carbide, Indexable Turning Insert For Boring, External Turning, Facing, Internal Facing
WNGG431AH KW10 Grade Uncoated Carbide, Indexable Turning Insert For Boring, External Turning, Facing, Internal Facing
$12.21 USD
- Stock: In Stock
- Model: WNGG
- Weight: 0.10kg
- Manufactured: In China
- Ships: Worldwide
- Kyocera Item Code: TWE04417
This product has a minimum quantity of 10
WNGG431AH KW10 Grade Uncoated Carbide, Indexable Turning Insert For Boring, External Turning, Facing, Internal Facing
Wngg 431Ah Kw10 Grade Uncoated Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert For Light Interruption And Medium-Roughing In (N) Non-Ferrous Metals, (S) Titanium Alloy And (K) Gray Cast Iron
- Insert for External Turning, Facing, Boring, Internal Facing
- Sharp Edge / Non-Ferrous Metals with 6 Cutting Edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys

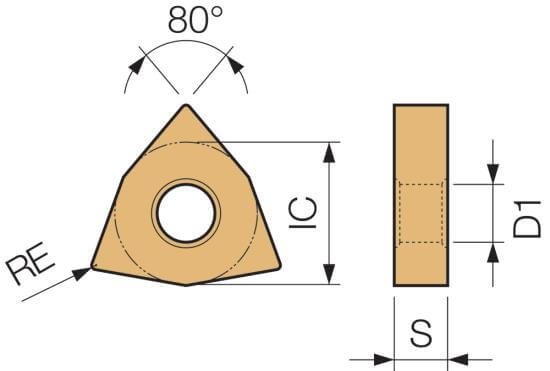

| Manufacturer | Kyocera Precision Tools |
| Manufacturer Part Number | TWE04417 |
| ISO Part Number | WNGG080404AH |
| ANSI Part Number | WNGG431AHKW10 |
| Radius Size | 1/64" |
| Thickness | 3/16" |
| Material | Carbide |
| Tool Coating | Uncoated |
| Primary Application | Boring|External Turning|Facing|Internal Facing|Sub-Spindleg |
| Hand | Neutral |
| Included Angle | 80 |
| Country of Origin | China |
| Grade | KW10 |
| Series | ISOI |
| Style | WNGG |
| Size | 431 |
| Shape | 80 Degree Trigon |
| Type | Turning |
| Inscribed Circle | 1/2" |
| CHIP BREAKER | AH |
