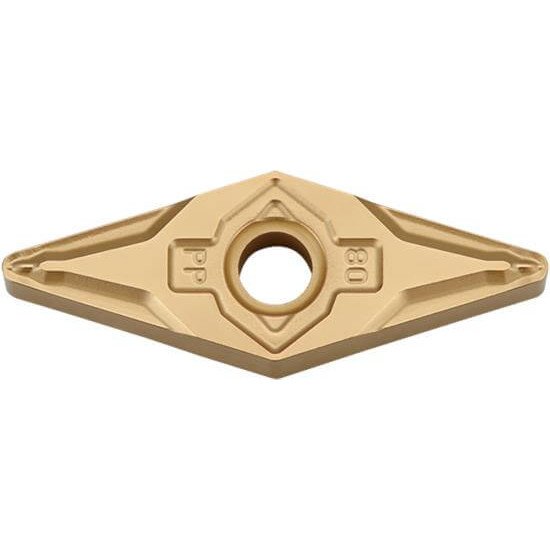

VNMG330.5PP CA025P Grade CVD Carbide, Indexable Turning Insert For Copying, External Turning, Facing, Undercutting
VNMG330.5PP CA025P Grade CVD Carbide, Indexable Turning Insert For Copying, External Turning, Facing, Undercutting
$6.92 USD
- Stock: In Stock
- Model: VNMG
- Weight: 0.11kg
- Manufactured: In Japan
- Ships: Worldwide
- Kyocera Item Code: TMH00054
This product has a minimum quantity of 10
VNMG330.5PP CA025P Grade CVD Carbide, Indexable Turning Insert For Copying, External Turning, Facing, Undercutting
Vnmg 3305Pp Ca025p Grade Cvd Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert For Light Interruption And Finishing In (P) Carbon/Alloy Steel
- Insert for External Turning, Copying, Facing, Undercutting
- 4 Cutting Edges
- Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.
- Application: General to interrupted machining of steel
| Manufacturer | Kyocera Precision Tools |
| Manufacturer Part Number | TMH00054 |
| ISO Part Number | VNMG160402PP |
| ANSI Part Number | VNMG3305PPCA025P |
| Radius Size | 0.008" |
| Thickness | 3/16" |
| Material | Carbide |
| Tool Coating | CVD |
| Primary Application | Copying|External Turning|Facing|Undercutting |
| Hand | Neutral |
| Included Angle | 35 |
| Country of Origin | Japan |
| Grade | CA025P |
| Series | ISOI |
| Style | TNMG |
| Size | 3305 |

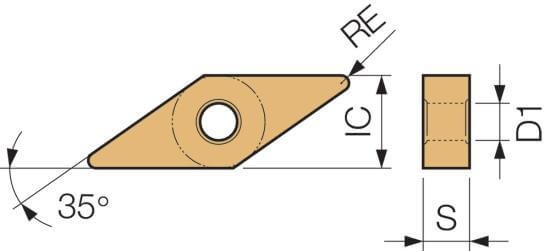

| Shape | 35 Degree Diamond |
| Type | Turning |
| Inscribed Circle | 3/8" |
| CHIP BREAKER | PP |
