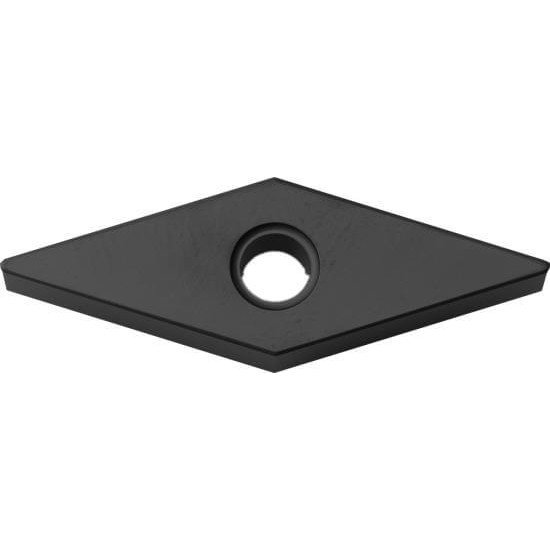

VNGA331T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert For Copying, External Turning, Facing, Undercutting
VNGA331T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert For Copying, External Turning, Facing, Undercutting
$7.64 USD
- Stock: In Stock
- Model: VNGA
- Weight: 0.04kg
- Manufactured: In Japan
- Ships: Worldwide
- Kyocera Item Code: TCR01075
This product has a minimum quantity of 10
VNGA331T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert For Copying, External Turning, Facing, Undercutting
Vnga 331T00825 A65 Grade Uncoated Ceramic, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert For Continuous And Finishing-Medium In (K) Gray Cast Iron, (H) Hardened Materials
- Insert for External Turning, Copying, Facing, Undercutting
- 4 Cutting Edges
- Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)
- Application: Semi-roughing to finishing of steel, cast iron, and hard materials
| Manufacturer | Kyocera Precision Tools |
| Manufacturer Part Number | TCR01075 |
| ISO Part Number | VNGA160404T02025 |
| ANSI Part Number | VNGA331T00825A65 |
| Radius Size | 1/64" |
| Thickness | 3/16" |
| Material | Ceramic |
| Tool Coating | Uncoated |
| Primary Application | Copying|External Turning|Facing|Undercutting |
| Hand | Neutral |
| Included Angle | 35 |
| Country of Origin | Japan |
| Grade | A65 |
| Series | ISOI |
| Style | VNGA |
| Size | 331 |
| Shape | 35 Degree Diamond |
| Type | Turning |
| Inscribed Circle | 3/8" |
